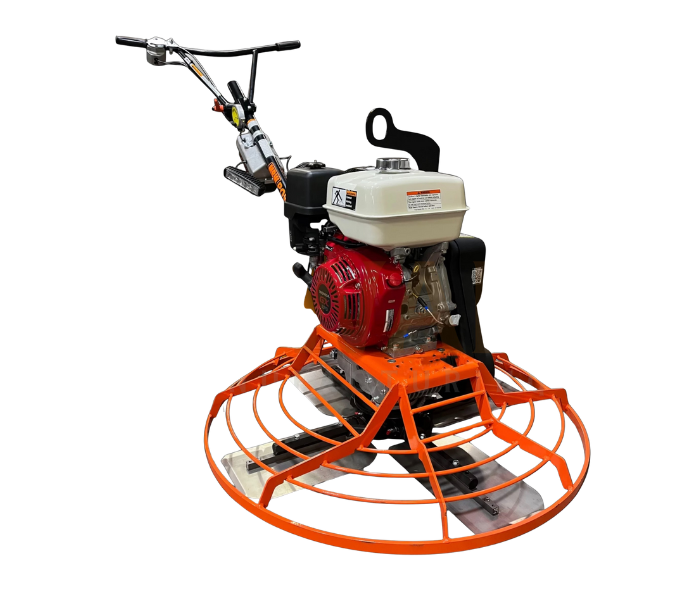

The SWAN Walk-Behind Concrete Power Trowel is engineered for efficient and uniform concrete surface finishing. Designed with a heavy-duty gearbox, precision-balanced blades, and a rigid MS frame, this machine delivers smooth, dense, and durable finishes on freshly laid concrete floors. Available in Diesel and Electric configurations to suit diverse site and power conditions.
| Parameter | Specification |
| Machine Type | Walk-Behind Concrete Power Trowel |
| Power Source | Diesel Engine / Electric Motor |
| Rated Power | Diesel: 5 HP | Electric: 3 HP |
| Starting System | Diesel: Manual/Recoil | Electric: DOL / Star-Delta |
| Voltage (Electric) | 415 V, 3 Phase, 50 Hz (230 V Optional) |
| Fuel Type (Diesel) | Diesel |
| Rotor Diameter | 36 Inch (900 mm) |
| Number of Blades | 4 Nos. |
| Blade Size | Approx. 14” × 6” |
| Blade Pitch Control | Manual Adjustment |
| Operating Speed | 60 – 130 RPM |
| Gearbox | Heavy-Duty, Oil-Lubricated Gearbox |
| Frame Construction | Heavy-Duty MS Fabricated Frame |
| Safety Guard | Circular MS Pipe Guard Ring |
| Handle Type | Ergonomic Handle with Throttle Control |
| Finishing Capacity | 220 – 300 m² per Hour* |
| Noise Level | Diesel: Standard | Electric: Low Noise |
| Vibration Level | Low, Operator-Friendly |
| Weight | Approx. 80 – 95 Kg |
| Application Area | Industrial Floors, Warehouses, RCC Slabs, Roads |
| Operating Mode | Continuous Duty |
Key Features
Applications
Optional Attachments
