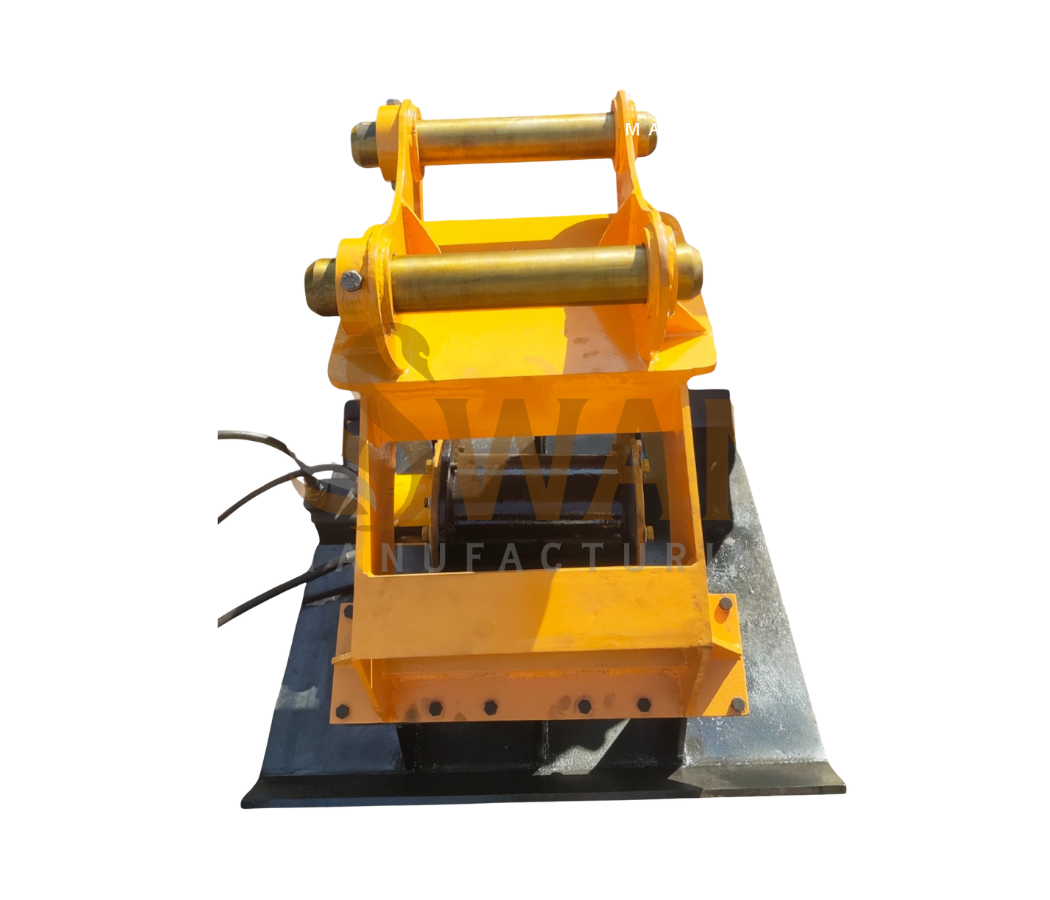

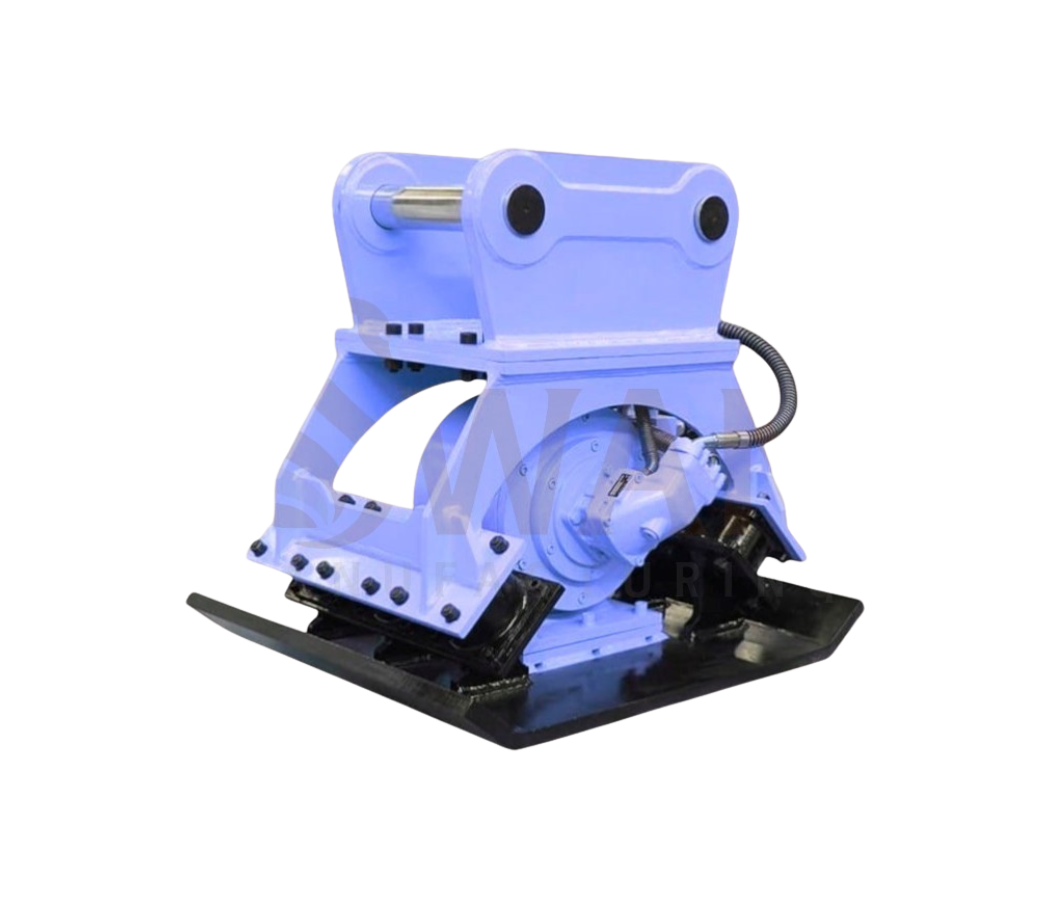

Plate Vibratory Compactor

Enhance your excavator’s productivity with the Swan Manufacturing Hydraulic Plate Compactor Attachment, engineered for powerful, fast, and uniform soil compaction. Designed for trenches, embankments, foundations, and slope areas, this attachment delivers high centrifugal force, deep compaction, and safe remote operation directly from the excavator cabin. Built with a hardened steel base plate, precision vibration system, and heavy-duty hydraulic motor, it ensures maximum performance with minimal maintenance. Ideal for contractors in roadwork, pipeline projects, construction sites, and infrastructure development.

Model	Suitable Excavator	Plate Size (L × W)	Operating Weight	Centrifugal Force	Vibration Frequency	Oil Flow Required
SEXP-40	3–5 Ton	700 × 450 mm	180–220 kg	25–30 kN	35–50 Hz	35–45 LPM
SEXP-60	6–9 Ton	800 × 550 mm	280–320 kg	35–45 kN	35–50 Hz	45–60 LPM
SEXP-80	10–14 Ton	900 × 650 mm	380–450 kg	50–65 kN	35–50 Hz	60–80 LPM
SEXP-120	15–20 Ton	1100 × 750 mm	550–650 kg	80–95 kN	35–50 Hz	80–110 LPM

Key Features

High-impact hydraulic vibration for fast compaction

Suitable for 3–20 Ton excavators

Perfect for trenches, slopes & restricted-access areas

Reduced labour, higher safety, and faster project completion

Custom brackets available for all excavator models

Applications

Pipeline trench compaction

Canal, dam & embankment compaction

Road & bridge foundation work

Backfill compaction around retaining walls

Slope, hard-to-reach & dangerous terrains

Sand, gravel, soil & cohesive material compaction

Why Choose Swan Manufacturing

Engineered for Indian working conditions.

Heavy-duty structure ideal for long continuous operation.

Low vibration transmission to the excavator arm.

High impact force ensures faster job completion.

Custom engineering solutions available.
